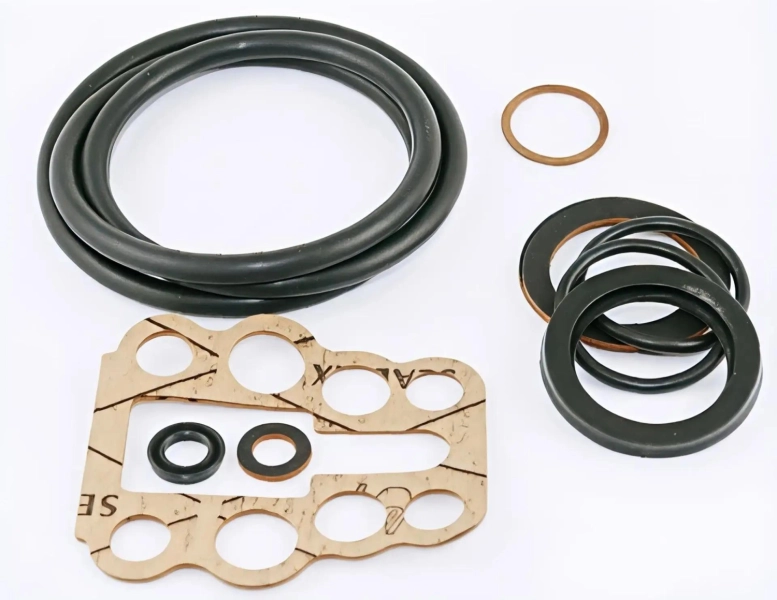

Ремкомплект пневмомотора GRACO King Xtreme AG-207730

Рем.комплект для для пневмомотора KING Xtreme, AG - 207730

Совместим с окрасочными аппаратами Graco XTREME KING

Инструкция-деталеровка окрасочного аппарата высокого давления Graco Xtreme KING

Ref.
No. Part No. Description Qty.
2 100424 SCREW, cap 1/2”–13 X 1.25 HHCS 12
3 100052 WASHER, lock 3/8” 4
4 100101 SCREW, cap 3/8”–16 X 1.0 HHCS 4
5 100133 WASHER, lock 3/8” 4
6 113161 SCREW, slot 1/4”– 20 X .5 HHCS 8
8 101713 SCREW, cap 7/16”–14 X 3.5 HHCS 4
9 101716 SCREW 10–24 X .6 FLH 8
11 102726 PLUG, pipe 3/4” NPT 1
12* 102727 O–RING, packing 1
13 102737 O–RING, packing 1
16 150647 GASKET, metallic 1
17* 156698 O–RING, packing 2
18 180952 RING, lift 1
19* 161559 WASHER, backup 1
20* 161560 PACKING, vee 1
21* 161562 PACKING, vee 1
22* 161563 PACKING, back–up 1
24* 161569 SEAL, wiper, felt 1
25 161575 SPRING, compression 2
26 161576 WASHER, thrust 2
27 161577 BUMPER, air motor 2
28 161585 HOUSING, valve slide 1
29 176569 NUT, trip rod 1
30 161587 RETAINER, spring 2
31 161588 GUIDE, latch, spring 2
Ref.
No. Part No. Description Qty.
32 161589 SPRING, compression 2
33 176568 BUSHING, trip rod 1
34 176564 STUD, rod, piston 1
35 168182 VALVE, director, air 2
36* 168183 GASKET, manifold 2
37* 168184 SEAL, plate 2
38 168185 GROMMET, air inlet 1
39 245114 PISTON, air 1
40 168187 MANIFOLD, air 2
41 168188 SHIELD, motor 1
42* 168189 GASKET, motor 1
43 168191 CYLINDER, motor 1
45 177664 HOUSING, detent, motor 1
46 169583 PLUNGER, roller 2
47 169584 PLATE, valve, air 2
48 169585 ROLLER 2
49 169586 AXLE, detent 2
52 215933 BEARING, sleeve 1
53 207648 UNION, adapter 1
54 245115 BASE 1
55 218597 TRIP ROD 1
67Δ 290331 LABEL, warning 1
68Δ 189991 LABEL, warning 1
69 105319 WASHER, lock, spring 1
